LPD Doors Linear 7 Panel FD30 Fire Door

Linear 7 Panel FD30 Fire Door

The LPD Doors Linear 7 Panel FD30 Fire Door combines clean, contemporary styling with the added reassurance of 30-minute fire-rated performance. Its distinctive seven-panel design features V-cut grooves that create a subtle ladder effect, giving the door a modern architectural feel. The smooth black laminate finish adds a bold, sophisticated touch, making it an excellent choice for contemporary homes and commercial interiors.

Modern Style and Solid Construction

The Linear 7 Panel FD30 is fully pre-finished and ready to install, offering a convenient, low-maintenance solution for modern interiors. The solid engineered core used in the fire-rated specification provides a robust construction, while the sleek laminate surface is designed to maintain its smart appearance with minimal upkeep. The door is available in the fire-rated sizes of 1981 x 686 x 44mm, 1981 x 762 x 44mm and 1981 x 838 x 44mm. All three FD30 options are 44mm thick and provide a 30-minute fire rating. The supplied technical specification lists a RAL 9005 finish for the Black Laminate specification.

Choice of Finishes and Sizes

The available Excel variants include both Black Laminate and White Laminate finishes. Each finish is offered in all three FD30 sizes, giving you six finish-and-size combinations in total. You can choose from 686mm (27"), 762mm (30") and 838mm (33") widths, all with a height of 1981mm and a 44mm thickness for the FD30 variants. This range makes it easier to select a door that suits your existing opening and interior design.

Installation Flexibility

The Linear 7 Panel FD30 can be trimmed within the manufacturer's specified limits, providing some flexibility during installation. For the 44mm fire-rated versions, the supplied specification allows up to 3mm trimming from both the short and long edges. The door also features 18mm long-edge lipping. Because this is a fire-rated door, trimming and installation should always be completed in accordance with the manufacturer's requirements to ensure the specified fire performance is maintained. Glazed versions of the Linear design are also available separately.

Available Variants

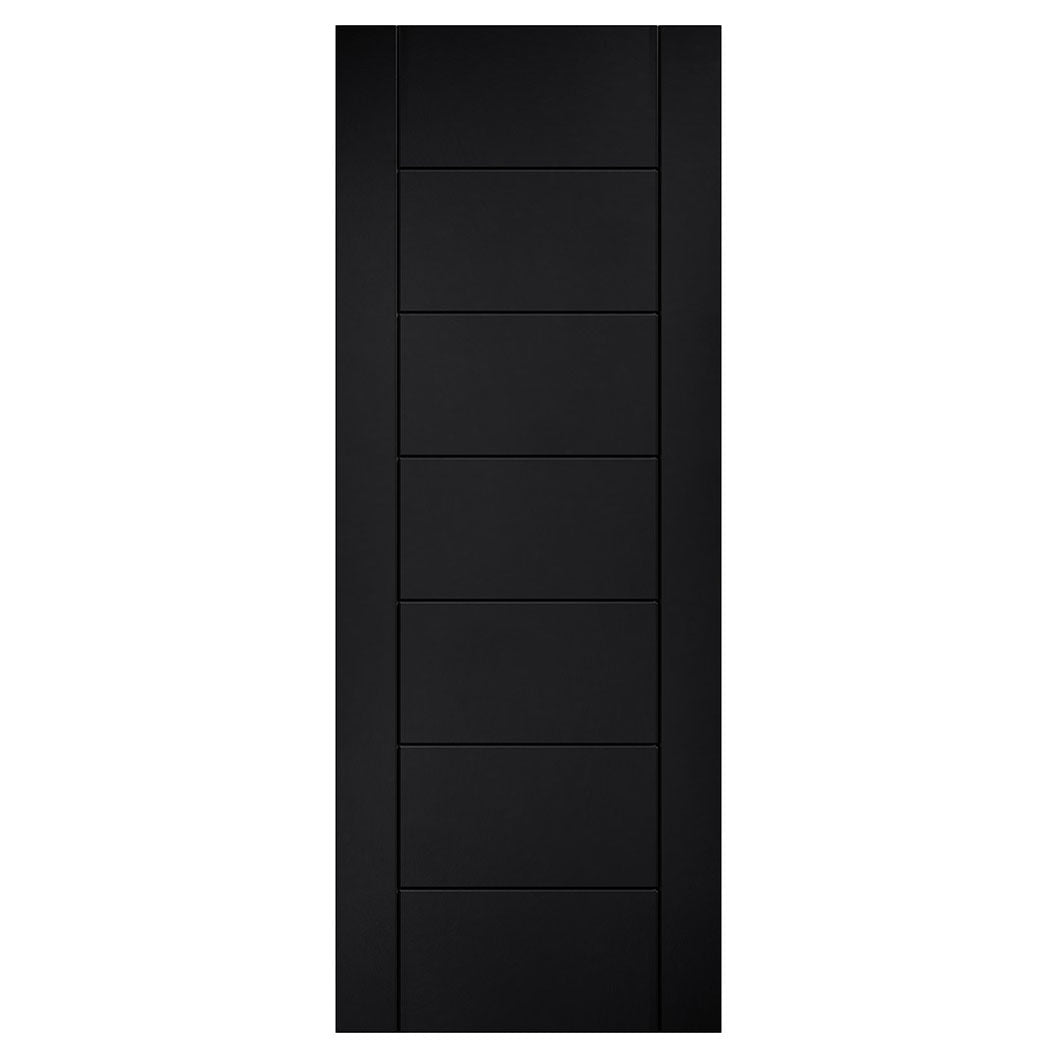

• Black Laminate – 1981 x 686 x 44mm
• Black Laminate – 1981 x 762 x 44mm
• Black Laminate – 1981 x 838 x 44mm

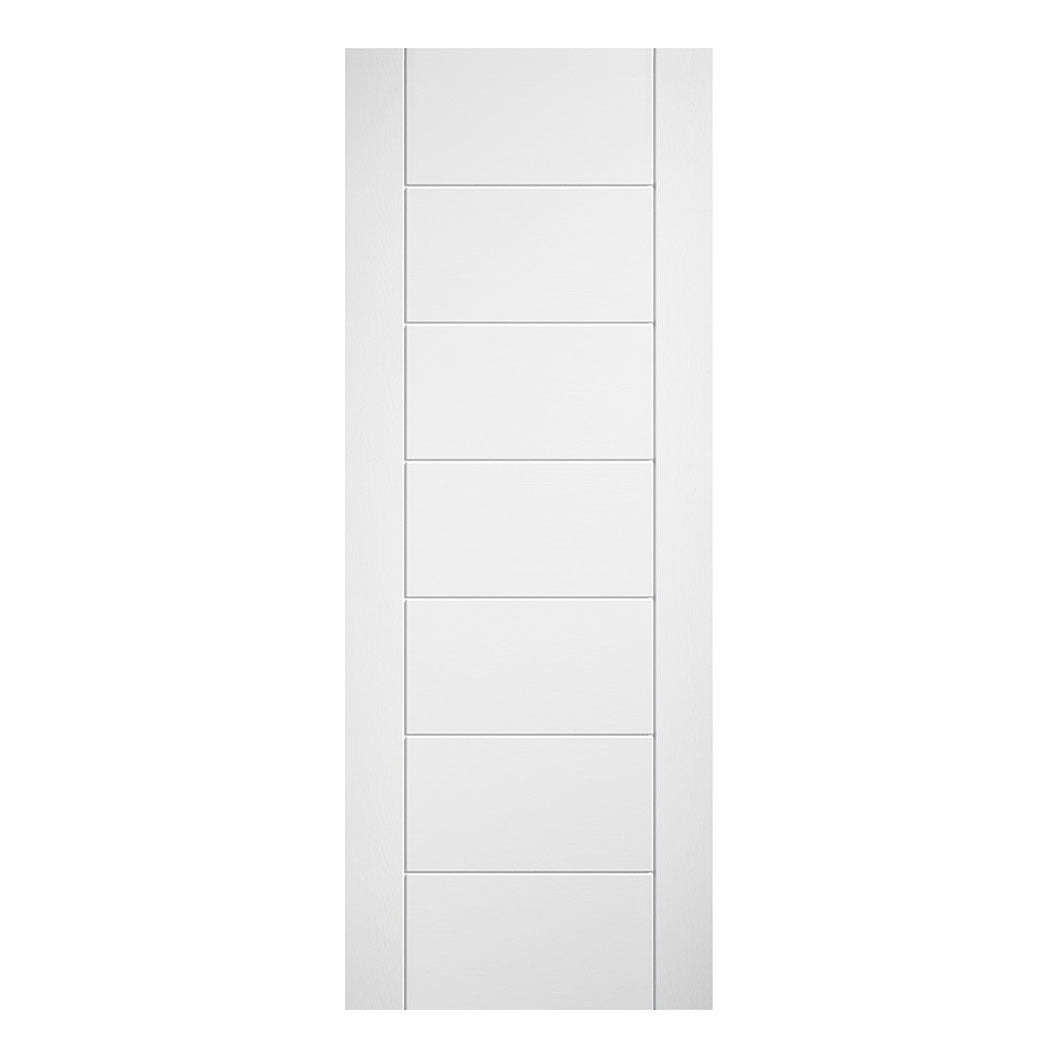

• White Laminate – 1981 x 686 x 44mm
• White Laminate – 1981 x 762 x 44mm
• White Laminate – 1981 x 838 x 44mm

All listed variants are 44mm thick FD30 fire doors with a solid engineered core and a 30-minute fire rating.

Key Features

• Contemporary seven-panel design
• V-cut grooves create a distinctive ladder-style effect
• Available in Black Laminate and White Laminate
• Available in 686mm, 762mm and 838mm widths
• All listed variants are 1981mm high and 44mm thick
• Solid engineered core for fire-rated construction
• 30-minute FD30 fire rating
• Fully pre-finished and ready to install
• RAL 9005 specification listed for the Black Laminate version
• Can be trimmed within specified manufacturer allowances
• 18mm long-edge lipping
• Glazed versions are also available
• Suitable for internal use
• 10-year manufacturer's conditional warranty

FAQs

What finishes are available for the Linear 7 Panel FD30 Fire Door?

The available variants include Black Laminate and White Laminate. Both finishes are offered in the 686mm, 762mm and 838mm FD30 widths.

What sizes is the Linear 7 Panel FD30 Fire Door available in?

The fire-rated versions are available in 1981 x 686 x 44mm, 1981 x 762 x 44mm and 1981 x 838 x 44mm. All three sizes have a 30-minute fire rating.

How much can the Linear FD30 door be trimmed?

According to the supplied technical specification, the 44mm FD30 versions can be trimmed by up to 3mm from the short edge and 3mm from the long edge. Fire-door trimming should always follow the manufacturer's specified requirements.
