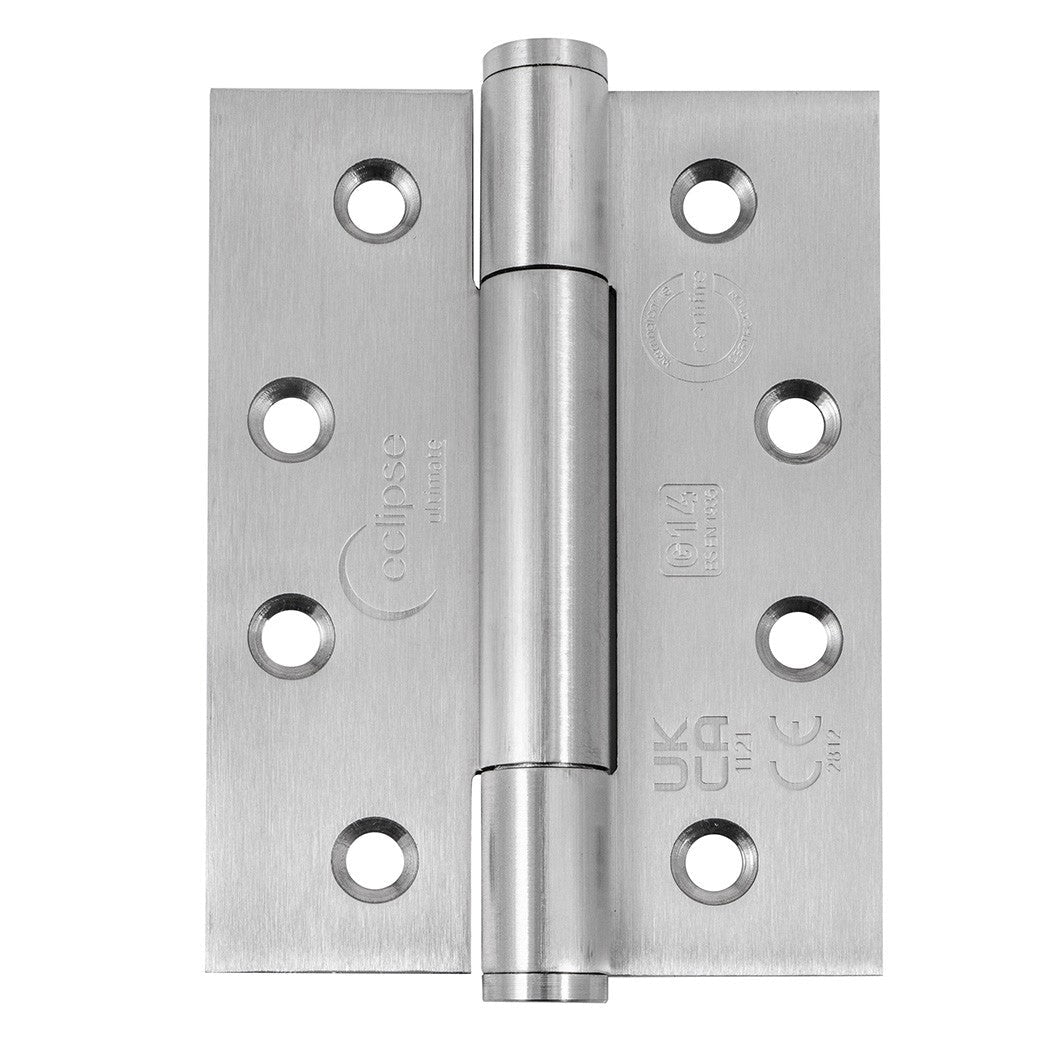

Frisco Eclipse 102x76x3mm Concealed Bearing Hinge Grade 14 SS201

Frisco Eclipse Grade 14 Concealed Bearing Hinge

The Frisco Eclipse 102x76x3mm Concealed Bearing Hinge Grade 14 SS201 is a strong and versatile hinge designed for demanding door applications where dependable performance and a clean appearance are important. With a Grade 14 rating, it is suitable for doors with a total door mass of up to 160kg, making it a practical choice for a wide range of residential, commercial and specification projects. Its concealed bearing design helps provide smooth door movement while maintaining a neat and unobtrusive appearance. The hinge is manufactured to provide reliable performance over repeated use and is supplied as a convenient pack of two.

Grade 14 Performance and Fire Testing

The Frisco Eclipse Concealed Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 14 performance. It is also marked to CE 1121 and UKCA 2812 and carries Certifire certification, providing additional assurance for appropriate applications. For fire-rated installations, the hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. The complete doorset must meet the applicable fire-performance requirements when this hinge is used for a fire-rated application.

Construction and Supplied Fixings

Measuring 102x76x3mm, the hinge features 10-gauge countersunk fixing holes for a neat and secure installation. It is supplied with 10 x 1¼-inch fully threaded screws, helping to make installation more convenient. The concealed bearing construction is designed to support smooth and reliable door operation, while the robust Grade 14 specification makes it suitable for heavier doors up to the stated 160kg total door mass. Each order is supplied as a pack of 2 hinges, making it convenient for installations requiring a pair of hinges.

Available Finishes

This Eclipse Concealed Bearing Hinge is available in seven finish options, giving you plenty of flexibility when coordinating the hinge with other door furniture and architectural hardware.

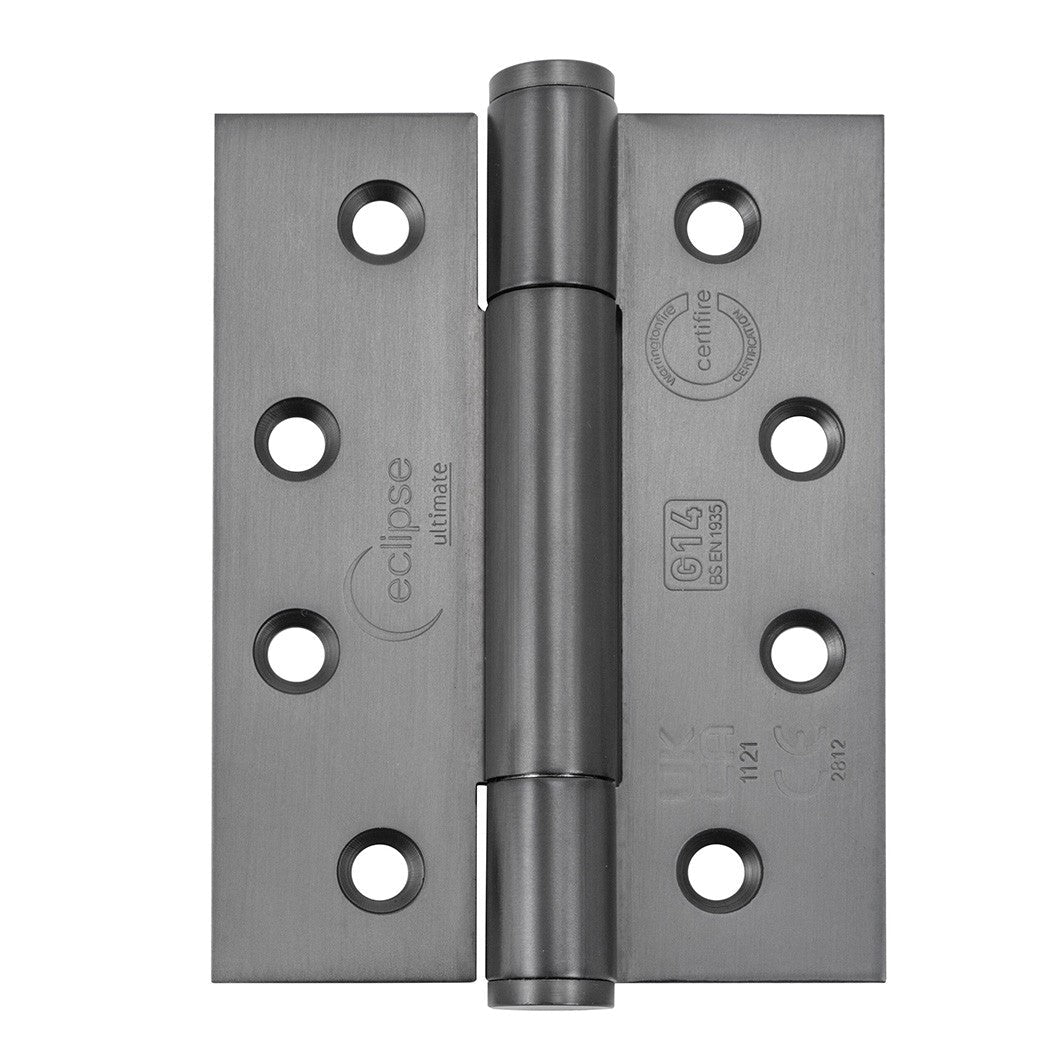

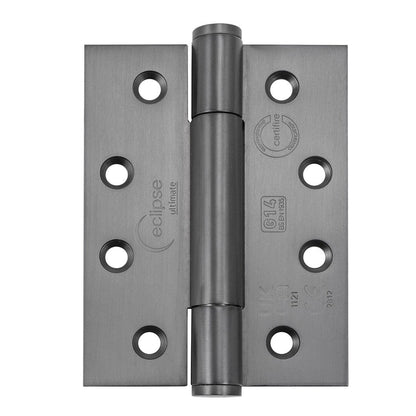

• Dark Bronze - a deep, traditional finish suited to classic and contemporary door designs.

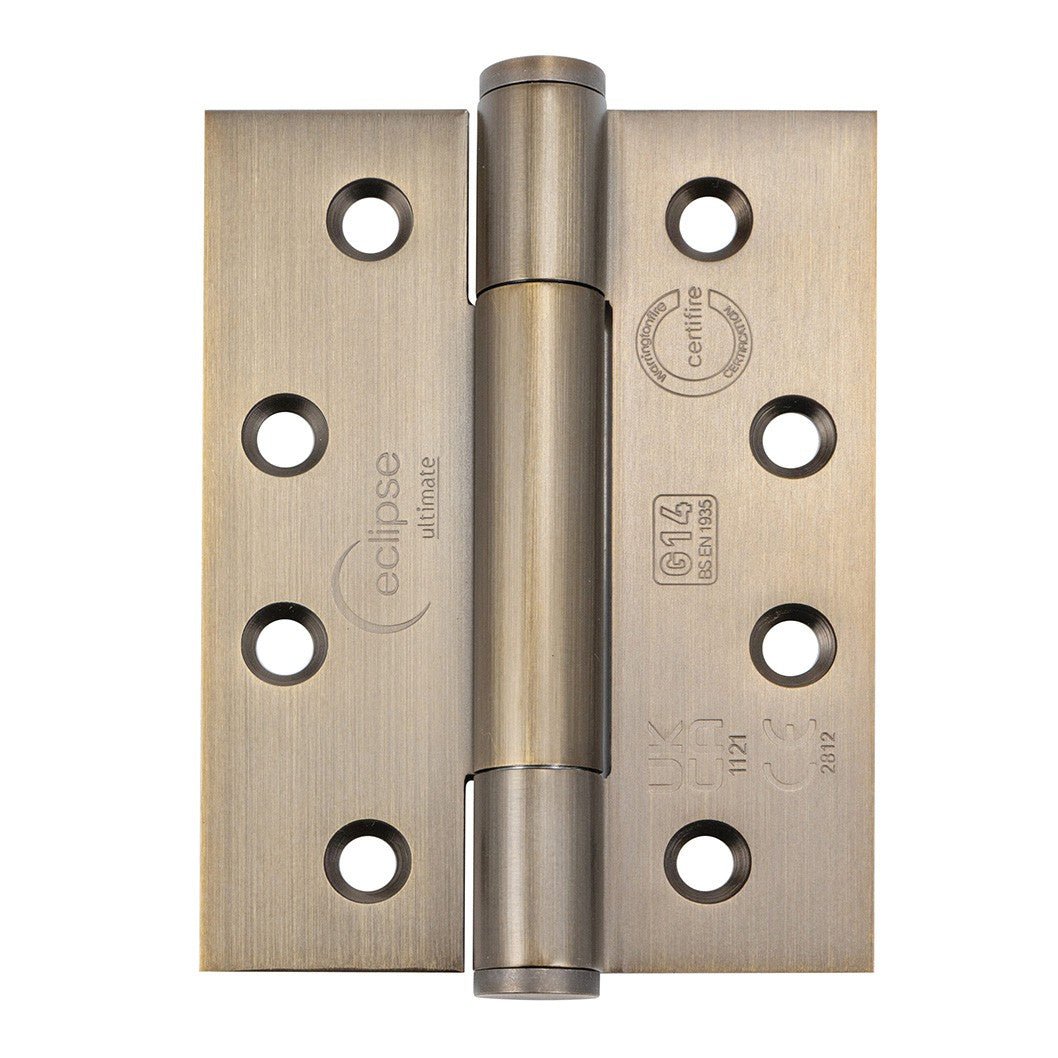

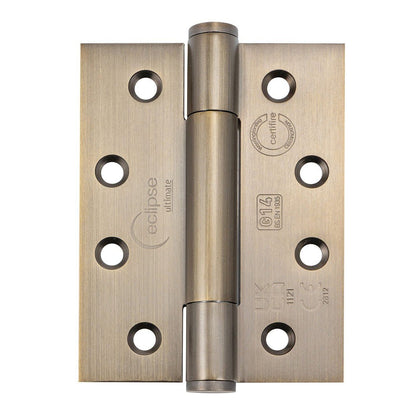

• Matt Antique Brass - a muted brass finish with an aged appearance.

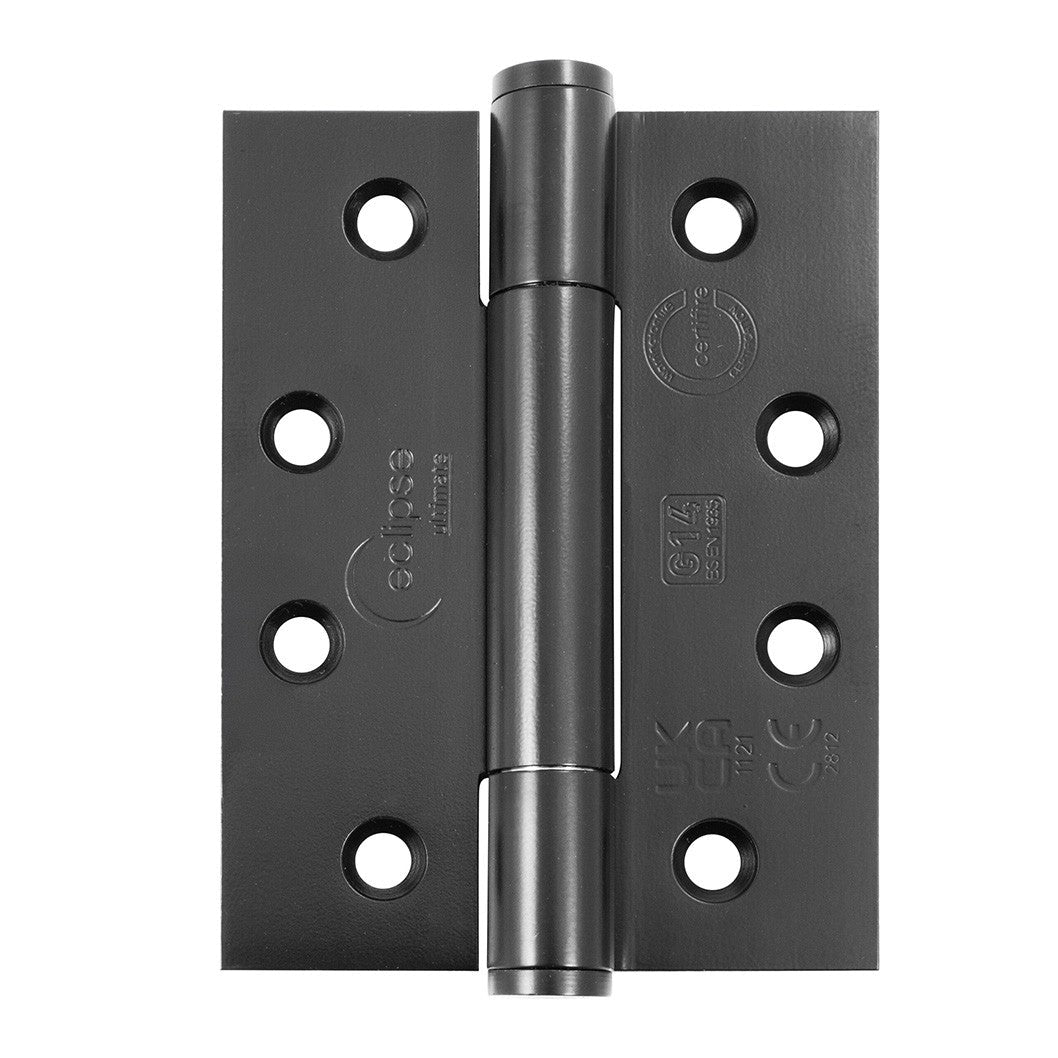

• Matt Black - a modern, understated finish that works particularly well with contemporary hardware.

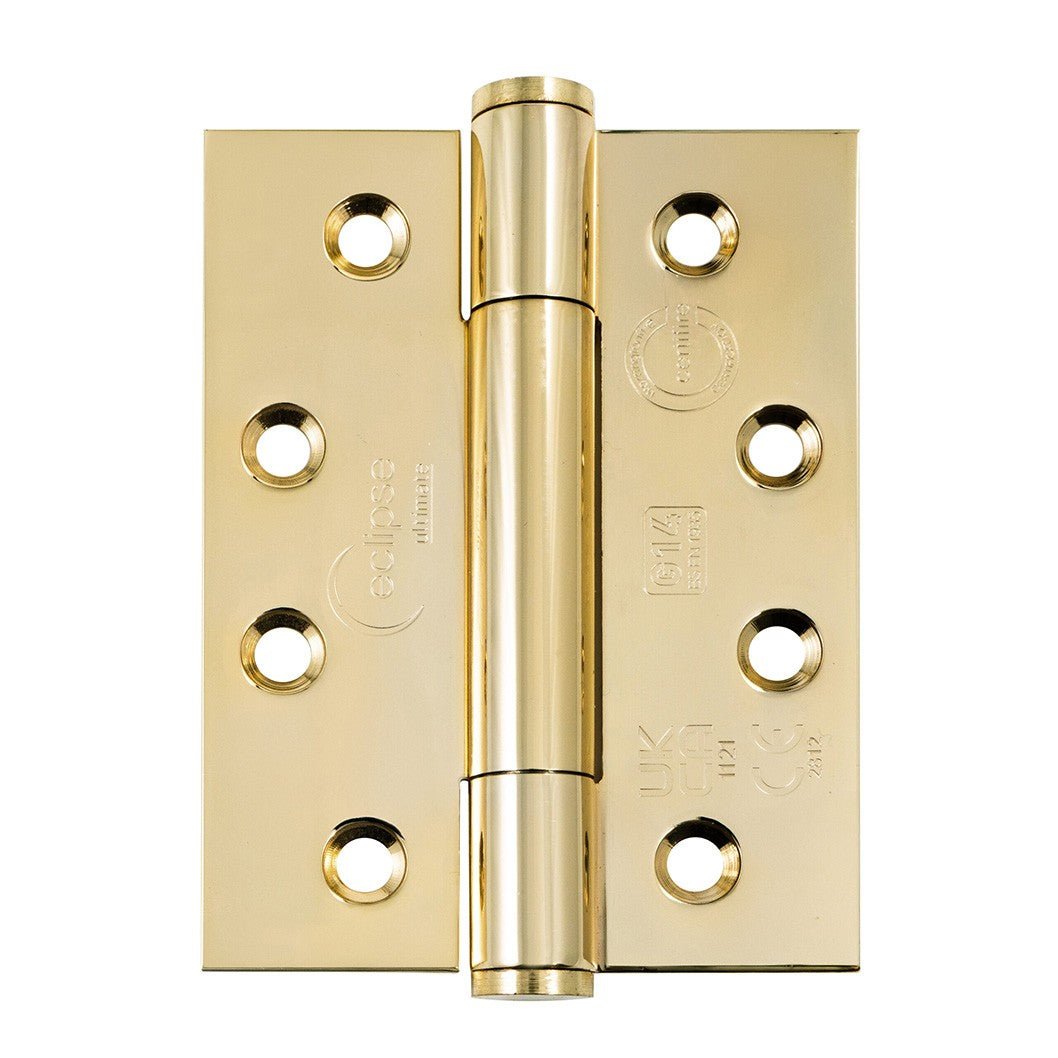

• Polished Brass - a bright, traditional finish for classic hardware schemes.

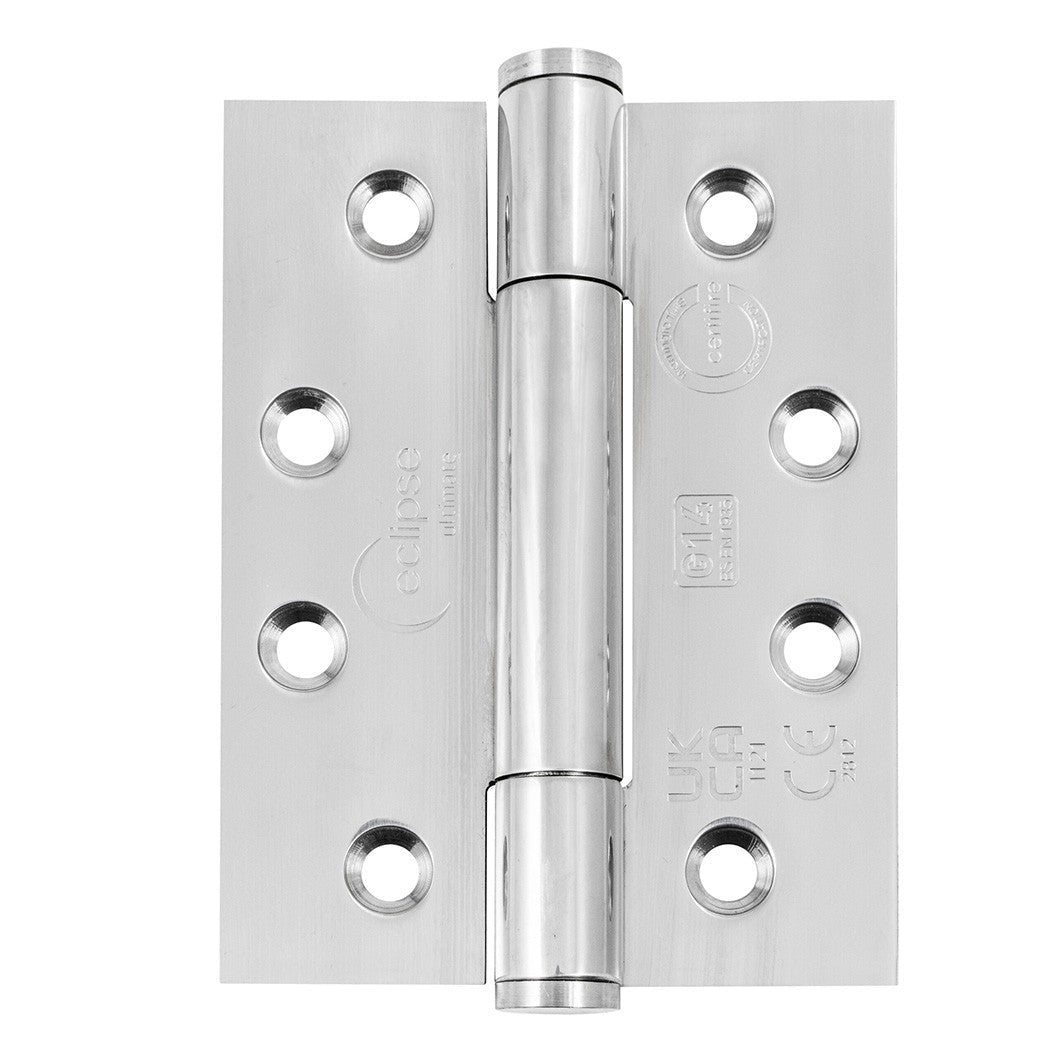

• Polished Stainless Steel - a bright and reflective finish with a contemporary appearance.

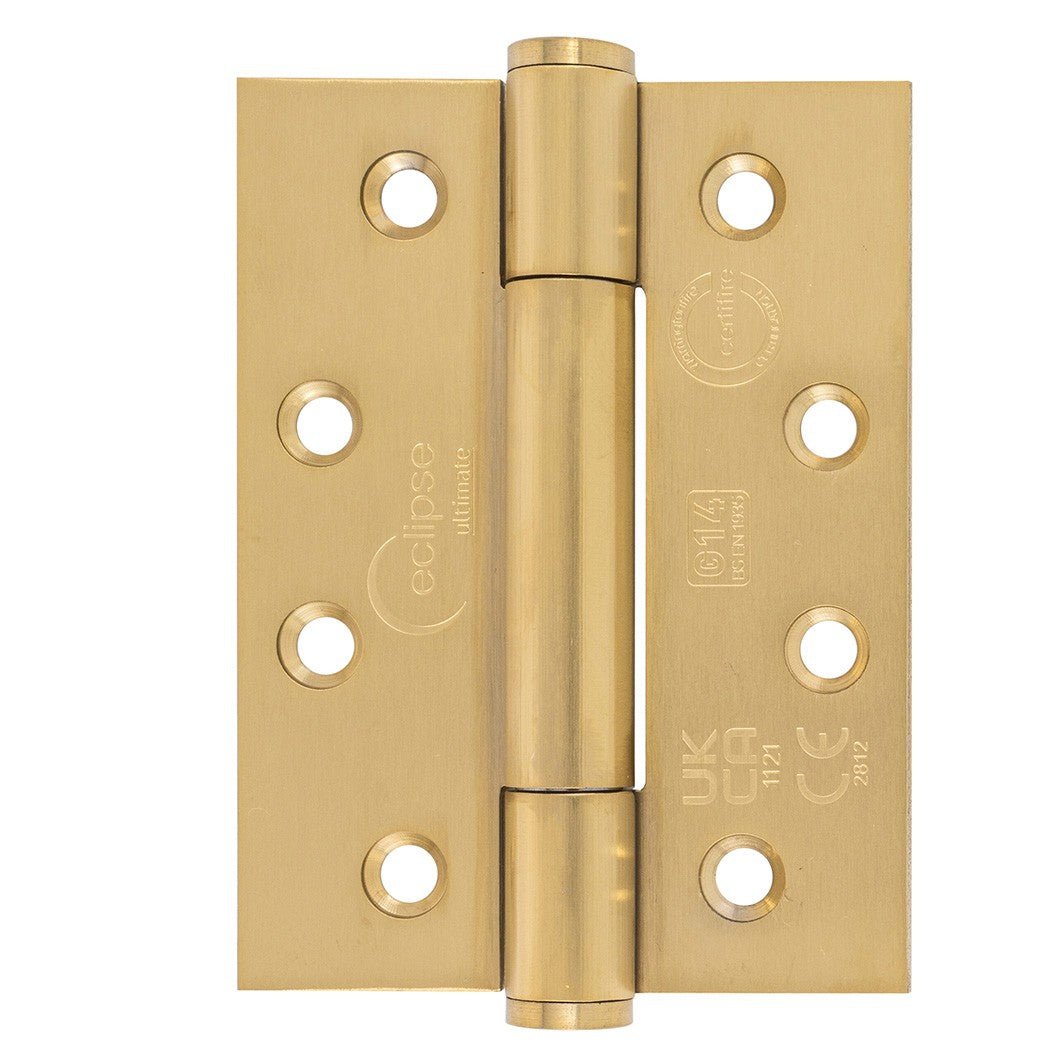

• Satin Brass - a softer brass finish with a refined, understated look.
• Satin Stainless Steel - a subtle stainless steel finish suitable for modern installations.

All finishes are available in the same 102x76x3mm Grade 14 concealed bearing specification.

Available Variants

All variants provided are covered below:

• Dark Bronze - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Matt Antique Brass - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Matt Black - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Polished Brass - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Polished Stainless Steel - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Satin Brass - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.
• Satin Stainless Steel - 102x76x3mm Grade 14 SS201 Concealed Bearing Hinge.

Frequently Asked Questions

What is the maximum door weight for this hinge?

The Frisco Eclipse Concealed Bearing Hinge is Grade 14 rated and designed for doors with a total door mass of up to 160kg, subject to correct installation and the requirements of the complete doorset.

How many hinges are supplied in a pack?

Each pack contains two Frisco Eclipse Concealed Bearing Hinges. The hinges are supplied with 10 x 1¼-inch fully threaded screws for installation.

What finishes are available?

The hinge is available in seven finishes: Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel. All variants share the same 102x76x3mm Grade 14 specification.
